Video Tour
|
Frequently Asked Questions | Order the video today. | |||||||||||
|

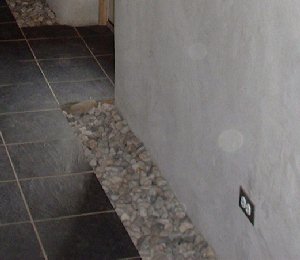

Why pebbles along straw bale wall on the north? Why did you do straw bale only on the north wall? |
![]() |
||||||||||||
|
What kind of wood is it that you used for the posts
and beams and why? How can I learn how to do my own straw bale construction?
How much did it cost? What is the pay back period? Are you going to do anything with concrete floors? |
![]() |
||||||||||||
|

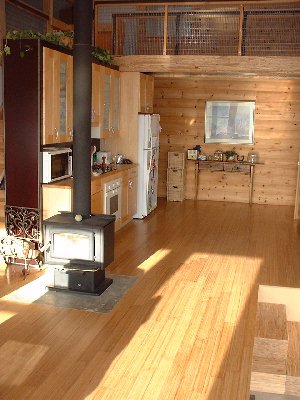

What type of wood did you use in the kitchen and
why? What is that big concrete thing north of the house? Does it get warm in the summer? Does the $400,000 include the cost of the land? Does Hydro pay you? Can all hyrdo meters go backwards? Is straw bale safe
fire, pests, rot, strength
can
you do it in the city? Did you have any problems getting the building
permit? Did you have any problem getting insurance? Did you have any problem getting building financing? How much is the wind turbine? Does the wind turbine make much noise? What was most valuable in your research into how
to do Natural Living? If you could have done anything different what
would it be? What should you do if you already own a home since
that is the majority of people?
|
![]() |
||||||||||||
|
What are you going to grow on your green roof and
how are you going to cut the grass? Can anyone create a green roof on their home? Can you get any rebates or do any incentive programs
exists for solar systems? Why did you decide to have a green roof? What is the grey/tin/silver roof/siding and what
is it for? Natural Home Design/Build Team Contacts: For more detailed
information about solar/wind power, natural homes, and much more: |
![]() |
||||||||||||
| More key contacts | |||||||||||||
|
Martin Lifehebber Architect Inc., Web Site: www.martinlifehebber.com . Leonard Allen, President, Phantom Electron Corporation.
Phone:(905) 430-6512 or check out their web site at www.phantomelectron.com Colin Richards, Wilson Natural Home Builder, C & R Contracting, Phone: (905) 880-2732. Pete, Chris and Tina, Camel's Back Construction, straw bale construction http://www.strawhomes.ca/ InLine Fiberglass Limited, Windows, Phone: (416) 679-1171,
http://www.inlinefiberglass.com/ Ian Jackson, K & M Bamboo Products Inc.,Bamboo Flooring, Phone: (905) 947-1688, E-Mail: info@silkroadflooring.com Lyle Jory, A.C.E.S. Radiant Floor Heating, Phone: 416 463 - 5835 or email -radiantheatjory@yahoo.ca . Jonathan Wolfe, Quality Rooves and Custom Metal, Phone: (416) 239-2200. |
|||||||||||||
| More frequently asked questions... | |||||||||||||
It wasn't easy. We have had to duplicate some of our systems to get around building code requirements. For example, although we will have composting toilets, and want to recycle our grey water, we had to install a septic system, along with one flush toilet so that it will work properly. Fortunately, the building inspector at the time was open to new ideas, and willing to discuss ways to make our objectives possible. An experienced architect, Martin Liefhebber was able to explain the technologies and methods directly to the Town authorities, and work with them and the builder to develop solutions. No, these of no more concern to us than they would be for anyone building a conventional frame house, in fact, the straw bale construction is more fire resistant than frame construction. A special lime compound is applied to the straw, to increase its fire resistant properties. The insulation value is approximately R43. The R-value comes from the natural insulation properties of straw bale, which is basically just cellulose. There are a variety of construction methods that can be used, in addition to post-and-beam. The straw bales themselves can be used as load-bearing walls, without any other framing material. Straw bale construction, by itself, is very economical. Depending on the seasonal conditions, you may pay $1 to $4 per bale. Volunteer labour helps to keep costs down too. Other factors may affect the cost, such as the non-standard design of such homes. Yes, the high insulation, good quality windows, well-designed roof, and ventilation system will ensure a comfortable indoor environment year-round. An EPA-approved wood-burning stove will help to supplement the heating on those cold, cloudy winter days. The sod roof is engineered to sustain the weight of the soil, plants, moisture and winters' snowfall. A waterproof membrane covers the plywood layer, which is insulated on the inside. Other special layers are applied over the waterproof membrane to channel water off the roof and keep roots from penetrating. Finally, 8 inches of soil is added, and then planted with "alpine growth" and local hearty varieties that require low maintenance. No, plants are specially selected to withstand dry spells. They are left to grow naturally. The main benefit is that it doesn't heat up in the same way as a conventional roof. On a hot summer day, a conventional roof can heat up to 120 degrees Fahrenheit. A sod roof will maintain a temperature of 72 degrees Fahrenheit or lower. This has the effect of keeping the home, and even the surrounding environment cooler. Other benefits include reduced rainwater runoff, and good insulation for cold winters provided by a layer of insulation, soil, and potentially snow. The warmth of the sun passes through low-e windows and is captured by the concrete floors. From there it is transferred to water running through tubing embedded in the floor, and circulated throughout the house. Composting toilets are like a garden composter, but constructed to decompose human waste using heat, air circulation, and natural bacterias. The resulting compost can be used to fertilize non-edible gardens, and is safe for the environment. The house was designed to be low-maintenance. Interior and exterior finishes are minimal, and much of it will never require painting or re-finishing. For example, floors are constructed of concrete, which may be expected to last a lifetime, and requires minimal upkeep. With no furnace, there is no ductwork to clean, and no fossil fuel burning needing annual service. It may have been easier, but not more sensible. This environmentally-friendly construction has long-term benefits, such as lower heating and utility costs, minimal maintenance, and will not be impacted by rising fossil fuel costs. It has a minimal impact on the natural environment, leaving a healthier, sustainable legacy for our children. We became familiar with Martin's work through the award-winning Toronto Healthy House, which he designed. After a few meetings, it became clear that Martin's experience and creativity would support the project's principles. We spoke to several builders, and selected Colin Richards because of his considerable experience, very high quality work, and interest in alternative construction techniques. Ultimately, we would like to grow our own food, using organic growing techniques and permaculture design. The rising cost of fossil fuels, and their effect on the environment had us very concerned about the future for our children and grandchildren. It is well known that non-renewable fossil fuels will be depleted in the next 50 to 100 years, making self-sustaining home design a necessity. We want to raise awareness of the feasability and ease of this type of design, even today. The radiant floor heating is constructed of "mass" (stone, concrete, etc.), which collects and stores solar heat. The heat is circulated to other areas of the home by water tubing embedded in the floor. The windows are double-glazed, krypton gas filled, low-e and fibreglass framed. This offers insulation, while allowing the heat of the sun to pass through. The roof is covered with soil, which absorbs heat and moisture, and insulates. Straw bales are an annually renewable resource, and very inexpensive, while offering a high insulation value (approximately R43). Bamboo flooring is another annually renewable material, which has the warmth and superior quality when compared to hardwood floors. The post-and-beam structure uses glue-lam beams, which are constructed of compressed "waste" wood and glue. They are much stronger, and more durable than conventional wood beams. |
|||||||||||||
